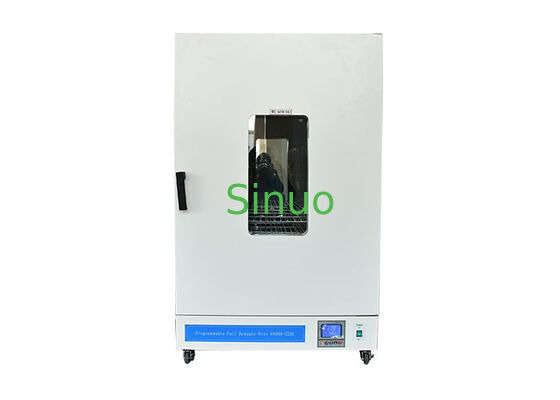

IEC 62133-1 Battery Thermal Impact Test Chamber 200℃ Thermal Abuse Test Equipment

MOQ:	1
Cena £:	Customized
Standardowe Opakowanie:	obudowa ze sklejki
Okres dostawy:	30 dni
Metoda płatności:	T/T
Wydajność dostaw:	20 zestawów miesięcznie

Szczegółowe informacje

Opis produktu

Szczegółowe informacje

Miejsce pochodzenia

Chiny

Nazwa handlowa

Sinuo

Orzecznictwo

Calibration Certificate (Cost Additional)

Numer modelu

SN556-408L

Zakres temperatur:

Temperatura otoczenia ~ 200 ℃

Dokładność kontroli temperatury:

± 0,5 ℃

Jednolitość temperatury:

±2,0 ℃ (bez obciążenia)

szybkość ogrzewania:

5 ℃ ± 2 ℃/min (RT ~ 150 ℃)

Metoda kontroli:

PLC Touch Screen Control

Rozmiar komory roboczej:

Szer. 800 × wys. 850 × gł. 600 mm

Materiał izolacyjny:

Wełna szklana o dużej gęstości

System cyrkulacji powietrza:

Wymuszona płaska cyrkulacja powietrza

Opis produktu

IEC 62133-1 Battery Thermal Impact Test Chamber 200℃ Thermal Abuse Test Equipment

Professional battery thermal abuse testing equipment designed for comprehensive battery safety evaluation under thermal stress conditions.

Product Overview

The Battery Thermal Impact Test Chamber is designed for battery thermal abuse and thermal impact testing in compliance with international battery safety standards including IEC62133-1:2017, IEC62133-2:2017, and IEC60086-4:2019.

This professional testing equipment simulates high-temperature environmental conditions by placing batteries inside a forced hot air circulation chamber. The system heats the battery to a preset temperature at a controlled heating rate and maintains stable thermal conditions for specified durations, enabling manufacturers to evaluate battery safety performance under thermal stress.

Widely used in lithium battery laboratories, EV battery testing centers, consumer electronics manufacturing, energy storage system testing, and certification laboratories.

Compliance Standards

IEC62133-1:2017 Clause 7.3.5
IEC62133-2:2017 Clause 7.3.4
IEC60086-4:2019 Clause 6.5.7

Main Features

High-precision PID temperature control system
Forced hot air circulation for excellent temperature uniformity
PLC touch screen intelligent control interface
SUS304 stainless steel inner chamber with corrosion resistance
SECC powder-coated steel exterior structure
Fast temperature recovery after door opening
High-temperature resistant long-axis motor and turbo blower
Multiple safety protections including over-temperature and overload protection
Optional tempered glass observation window with bursting disk
Stable heating performance for lithium battery safety testing
Custom chamber dimensions available upon request

IEC 62133-1 Battery Thermal Impact Test Chamber 200℃ Thermal Abuse Test Equipment 0

Technical Parameters

Item	Specification
Product Name	Battery Thermal Impact Test Chamber
Temperature Range	Ambient Temperature ~ 200℃
Temperature Control Accuracy	±0.5℃
Temperature Uniformity	±2.0℃ (No Load)
Heating Rate	5℃±2℃/min (RT~150℃)
Control Method	PLC Touch Screen Control
Working Chamber Size	W800 × H850 × D600 mm
External Dimensions	W1140 × D1130 × H1620 mm
Inner Chamber Material	SUS304 Mirror Stainless Steel
Outer Chamber Material	SECC Steel Plate with Powder Coating
Insulation Material	High Density Glass Wool
Observation Window	Tempered Glass with Bursting Disk
Mobility	Universal Wheels Installed
Power Supply	AC 220V ±10%, 50Hz
Heating Power	Approx. 5KW
Air Circulation System	Forced Flat Air Circulation
Heating System	PID + SSR
Motor	High Temperature Resistant Long Axis Motor
Blower Type	Multi-Impeller Turbo Fan

Advanced Air Supply Circulation System

Efficient Forced Air Circulation Design

The chamber adopts a high-efficiency forced air conveying circulation system. The circulation motor drives the turbo fan to continuously circulate hot air through the heating system and chamber interior, ensuring:

Uniform temperature distribution
Reduced energy consumption
Stable thermal testing conditions
Rapid temperature recovery after door operation

High Performance Components

1HP high-temperature resistant long-axis motor
Multi-impeller turbo blower with adjustable airflow plate
Optimized internal air duct structure for smooth airflow circulation

IEC 62133-1 Battery Thermal Impact Test Chamber 200℃ Thermal Abuse Test Equipment 1

Frequently Asked Questions

Q1: What standards does this battery thermal impact tester comply with?

A: The equipment complies with IEC62133-1:2017, IEC62133-2:2017, IEC60086-4:2019, and related battery safety testing standards.

Q2: What types of batteries can be tested?

A: The chamber is suitable for lithium-ion batteries, lithium polymer batteries, nickel batteries, EV battery modules, and energy storage batteries.

Q3: What is the maximum testing temperature?

A: The chamber can reach up to 200℃ with precise temperature control.

Q4: Can the chamber size be customized?

A: Yes, customized chamber dimensions and configurations are available based on customer testing requirements.

Q5: Does the equipment include safety protection features?

A: Yes, the tester includes over-temperature protection, overload protection, automatic power cut-off, and optional explosion-proof observation window configurations.

Q6: Is the temperature evenly distributed inside the chamber?

A: Yes, the forced air circulation system ensures excellent temperature uniformity throughout the working chamber.
